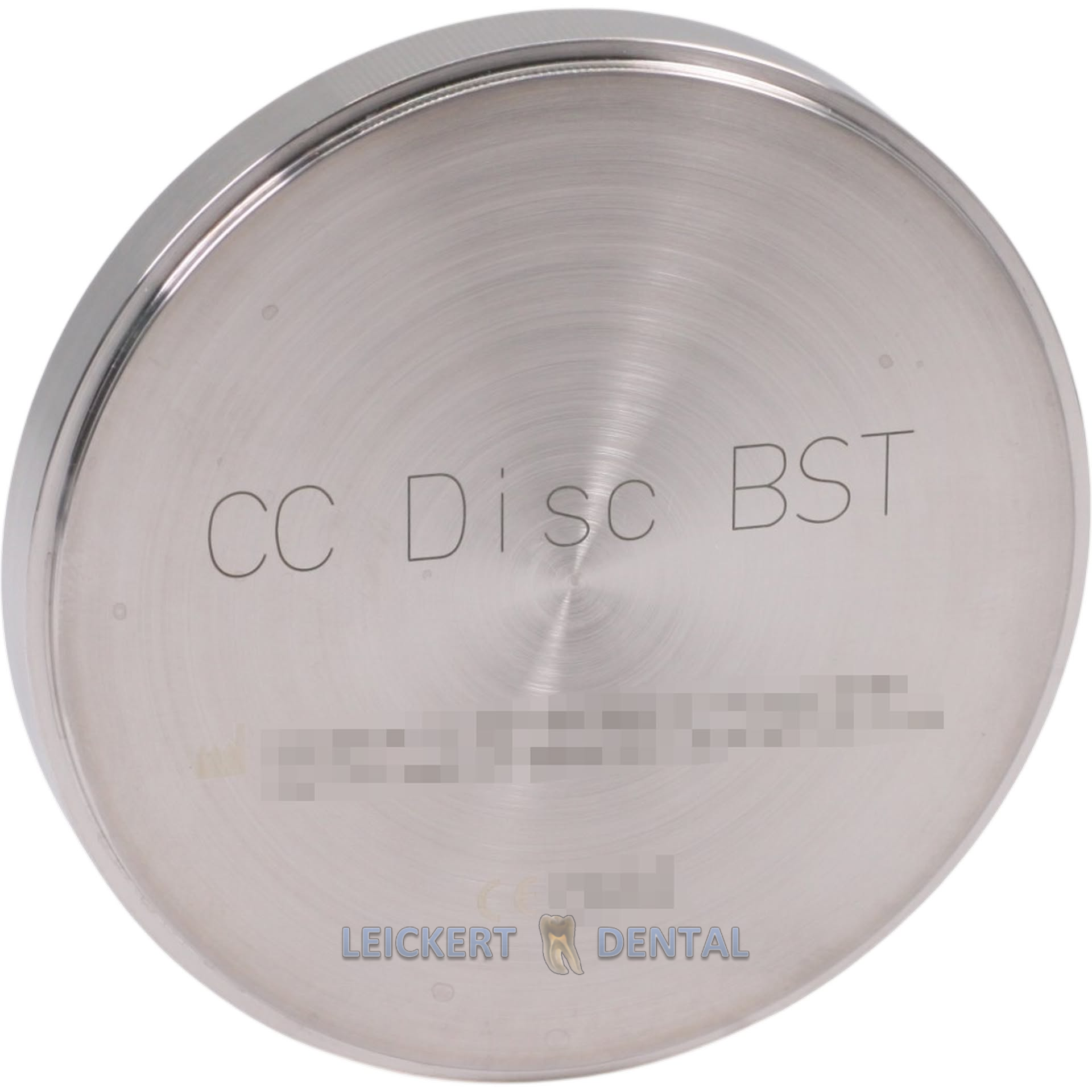

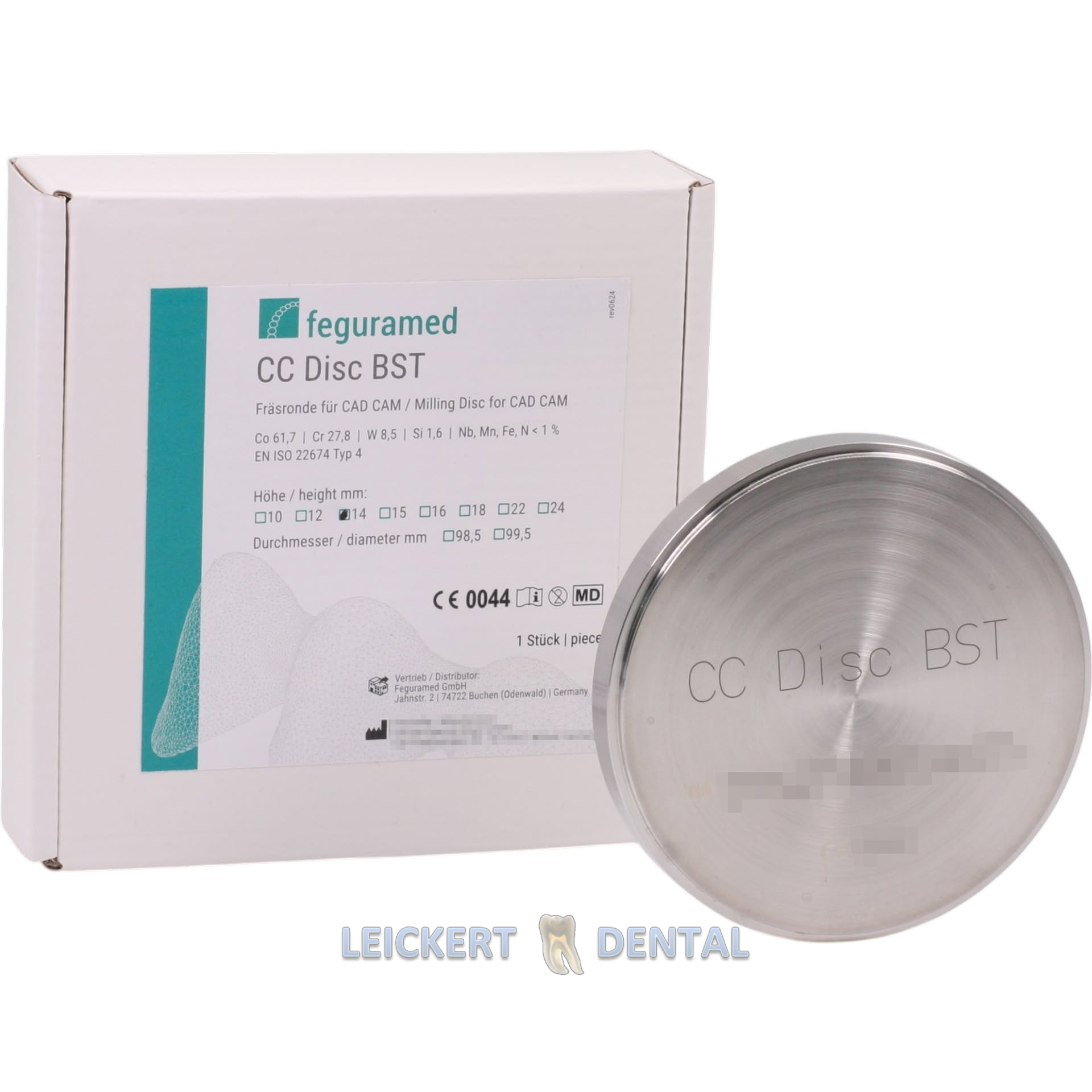

CAD CAM milling disc, CoCr base
CC Disc BST for the production of crowns and bridges, for classic veneering ceramics
-
High milling speeds due to low Vickers hardness
-
Optimal homogeneity due to powder metallurgical, highly isostatic pressing
-
Easy to finish and polish
-
Suitable for laser welding
-
According to ISO 22674, free of beryllium, cadmium and nickel
|
Composition %
|
Co 61.7 | Cr 27.8 | W8.5 | Si 1:6 | Nb, Mn, Fe, N < 1
|
|
Vickers hardness HV 10
|
>290
|
|
CTE (20-600 °C) [µ/K]
|
14.1
|
|
Melting range [°C]
|
1310-1400
|
|
Highest firing temperature [°C]
|
980
|
|
RP 0.2 [MPa]
|
400
|
|
Elastic modulus [GPa]
|
195
|
|
Elongation [A5%]
|
8
|
|
Delivery form
|
1 pc/pack |
Ø 98.5 mm x 10 mm (REF KB0260-10)
Ø 98.5 mm x 12 mm with shoulder (REF KB0260-12)
Ø 98.5 mm x 14 mm with shoulder (REF KB0260-14)
Ø 98.5 mm x 15 mm with shoulder (REF KB0260-15)
Ø 98.5 mm x 16 mm with shoulder (REF KB0260-16)
Ø 98.5 mm x 18 mm with shoulder (REF KB0260-18)
Ø 98.5 mm x 20 mm with shoulder (REF KB0260-20)
Ø 98.5 mm x 22 mm with shoulder (REF KB0260-22)
Ø 98.5 mm x 24 mm with shoulder (REF KB0260-24)
Unit of sale: 1 blank
Price discount:
5 blanks or more = 5%
10 blanks or more = 10%
Different colors and thicknesses can be selected.
The discount will be shown in your separate order confirmation.

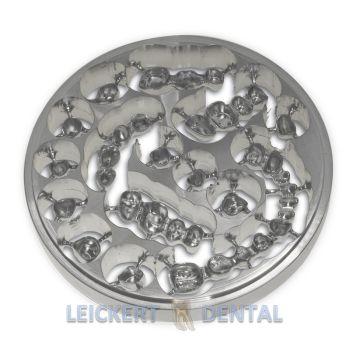

.jpg "CAD/CAM milling disc")
